IR Touchscreen vs PCAP: Which is Right for You?

Touchscreen technology has become a fundamental interface in modern devices. Among the various types available, Infrared (IR) and Projected Capacitive (PCAP) are two widely used technologies, each with distinct advantages and limitations. This article provides a detailed comparison to help you choose the right option for your application.

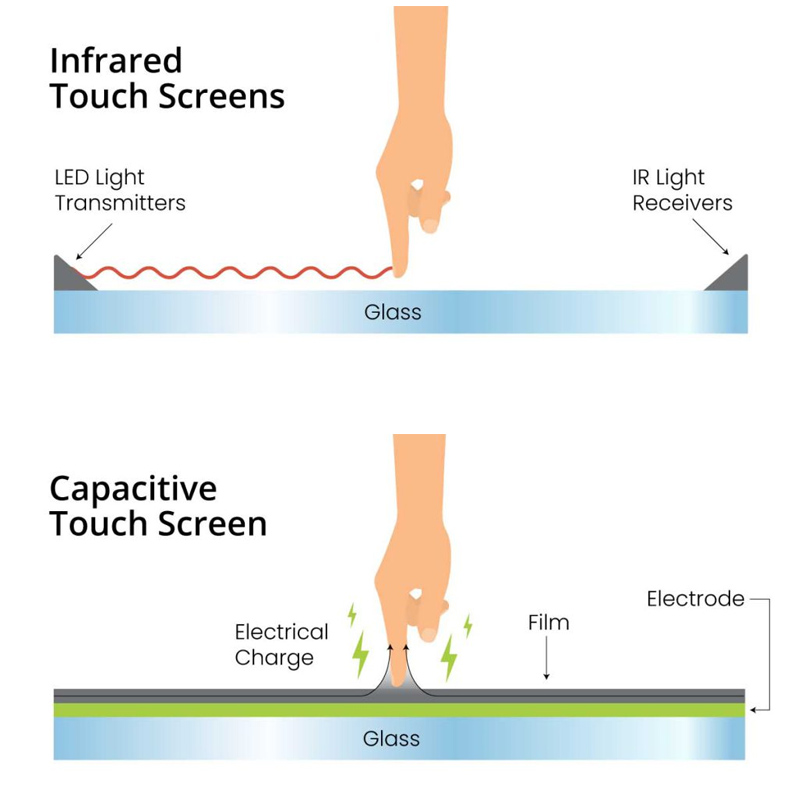

1. How They Work

IR Touchscreen
IR touchscreens use a grid of invisible infrared beams emitted from LEDs placed along the bezel. When an object—such as a finger or stylus—interrupts the beams, sensors detect the position of the touch. The object doesn't need to make direct contact with the screen.

PCAP Touchscreen
PCAP touchscreens work by sensing changes in electrical charge when a conductive object touches the screen. They offer high sensitivity and can detect multiple touchpoints simultaneously with excellent accuracy.

2. Design Flexibility

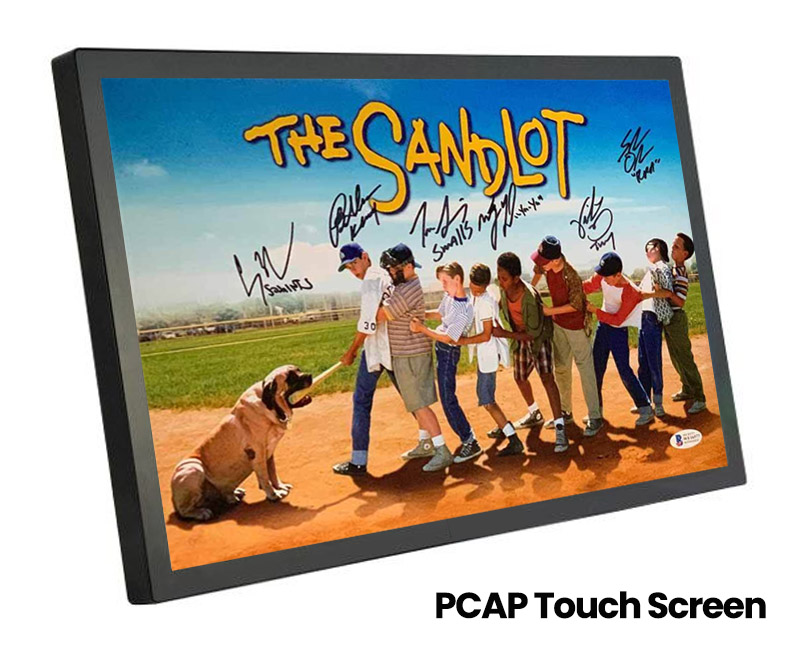

PCAP:

• Slimmer and more compact, ideal for modern, bezel-free designs.

• Widely adopted in consumer electronics, offering a variety of formats including open frame, closed frame, and edge-to-edge glass designs.

• Supports elegant glass-front integration, enhancing aesthetics and durability.

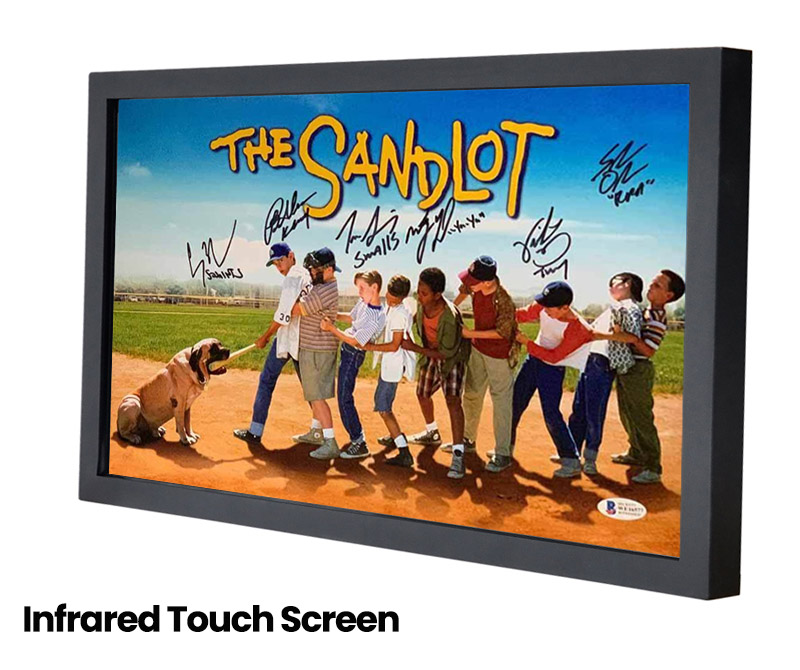

IR:

• Requires a bezel to house the infrared emitters and sensors, which limits design flexibility.

• Less suited for sleek or frameless designs, making it more applicable in industrial or educational settings.

3. Touch Response & Performance

PCAP:

• Offers faster and more precise touch response.

• Better at handling multi-touch gestures and ensuring smooth, lag-free interaction.


IR:

• Supports multi-touch, but response time and accuracy are slightly lower.

• Can be affected by ambient light, dust, or accidental obstructions.

4. Cost Considerations

IR:

• More cost-effective for larger screens (e.g., 55–85 inches).

• Uses simpler components, keeping hardware costs low.

PCAP:

• Generally more expensive, especially in larger sizes, due to complex manufacturing processes and materials.

• However, the price gap is narrowing as PCAP production scales up globally.

5. Shipping & Installation

IR Touchscreen:

• Shipped as separate IR frame, without the glass panel, making it lighter and less prone to damage.

• Glass is added locally during installation—flexible but requires professional handling.

• Not ideal for inexperienced end-users.

PCAP Touchscreen:

• Shipped as a complete unit with integrated glass, ensuring better alignment and functionality.

• Easier and faster installation—just mount and connect.

6. Maintenance & Cleaning

IR Touchscreen:

• Bezels and seams can trap dust and dirt, requiring extra effort and tools (e.g., brushes) for cleaning.

• Risk of cleaning solution seeping into seams if not done carefully.

PCAP Touchscreen:

• Flat, seamless glass surface is easier to clean, similar to a window.

• Ideal for high-use environments like casinos, airports, or hospitals where hygiene is important.

7. Ghost Touch Prevention

PCAP:

• Better resistance to false touches using advanced firmware and capacitive sensing algorithms.

• Less likely to register unintended inputs from small objects or environmental interference.


IR:

• Prone to ghost touches caused by insects, dust, or reflections—particularly problematic in outdoor or tropical environments.

• Though filters and software improvements help, it's still more sensitive to environmental factors.


Summary Comparison Table

Conclusion

Choosing between IR and PCAP touchscreen technologies depends on your priorities:

• Choose IR for large-format, cost-sensitive installations like classrooms or meeting rooms.

• Choose PCAP when design, performance, and cleanliness are critical—ideal for commercial, industrial, or high-traffic environments.
